R75-S HALO
R75-S HALO
acf domain was triggered too early. This is usually an indicator for some code in the plugin or theme running too early. Translations should be loaded at the init action or later. Please see Debugging in WordPress for more information. (This message was added in version 6.7.0.) in /home/afx3nlfwdm5n/public_html/wp-includes/functions.php on line 6121 R75-S HALO
| Model | HLO86-R12QS | Install Type | Recessed | ||
| Embedded Parts | With Trim / Trimless | Finishing Color | White/Black | Reflector Color | White/Black/Golden |
| Material | Aluminum | Cutout Size | Φ75mm | Height | 83mm |
| IP Rating | IP20 | Light Direction | Vertical 25°/ Horizontal 360° | Power | Max. 12W |
| LED Voltage | DC36V | Input Current | Max. 300mA |
| Light Source | LED COB | Lumens | 65 lm/W 90 lm/W | CRI | 97Ra / 90Ra |
| CCT | 3000K/3500K/4000K | Tunable White | 2700K-6000K / 1800K-3000K | Beam Angle | 15°/25°/35°/50° |
| Shielding | Angle 46° | UGR | ＜13 | LED Lifespan | 50000hrs |
| Driver Voltage | AC110-120V / AC220-240V | Driver Options | ON/OFF DIM TRIAC/PHASE-CUT DIM 0/1-10V DIM DALI |

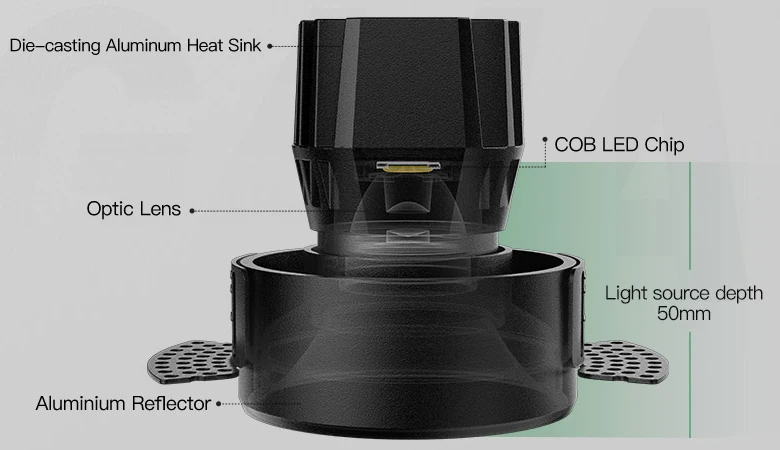

1. Die-cast aluminum radiator, high-efficiency heat dissipation.
2. COB LED Chip, CRI 97Ra, 50mm deep hidden light source, multiple anti-glare
3. Aluminum Reflector, Much better lighting distribution than plastic

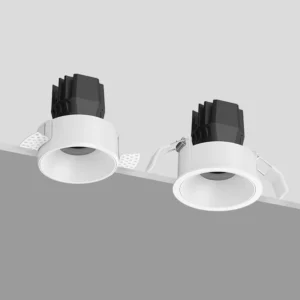

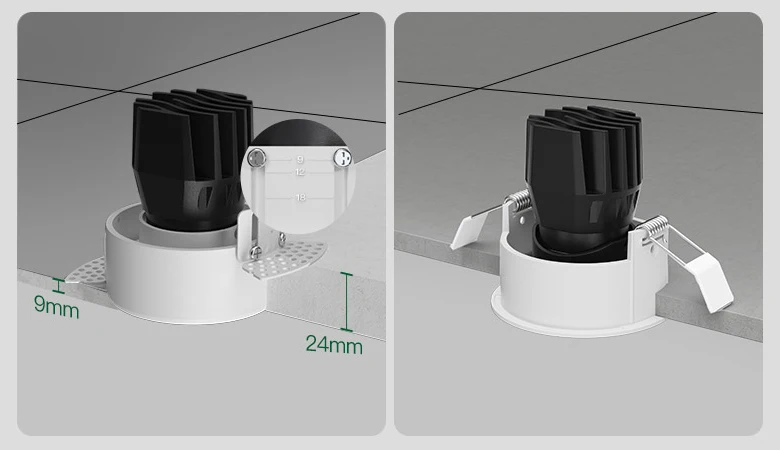

Embedded Part- With Trim & Trimless
fitting wide range of gypsum ceiling/drywall thickness
Formed by Die-casting and CNC | Outdoor spraying finishing

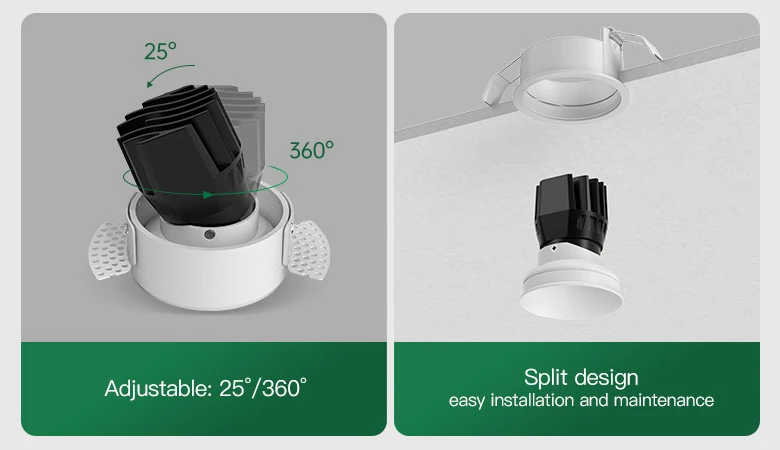

1. Light Direction: Angle adjustable vertical 25°, Horizontal 360°
2. Split design, Easy installation and maintenance
