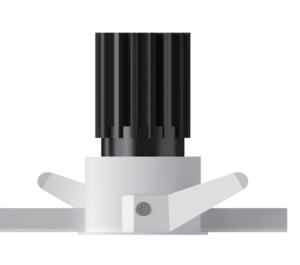

LED Downlight ETL D45mm Mini Spotlight Recessed LED Ceiling Downlight Indoor Lighting

Basic Information

Model	NIMB56-R55QS	Embedded Parts	With Trim/Trimless	Mounting	Recessed
Trim Finishing Color	White/Black	Reflector Color	White/Black/Golden/Black Mirror	Material	Cold Forged Pure Alu. (Heat Sink)/Die-casting Alu.
Cutout Size	45mm	Light Direction	Fixed	IP Rating	IP44
Power	Max. 10W	Input Voltage	DC36V	Input Current	Max. 250mA

Optical Parameters

Light Source	LED COB	Lumens	65lm/W 90lm/W	CRI	97Ra
CCT	3000K 3500K 4000K	CCT Changeable	2700K 6000K 1800K 3000K	Beam Angle	15° 25° 35° 50°
Shielding Angle	50°	UGR	＜13	LED Lifespan	50000hrs

Driver Parameters

Driver Voltage	AC100-120V AC220-240V	Driver Options	ON/OFF DIM TRIAC/ PHASE-CUT DIM 0/1-10V DIM DALI

Driver Voltage

AC100-120V AC220-240V

Driver Options

ON/OFF DIM TRIAC/ PHASE-CUT DIM 0/1-10V DIM DALI

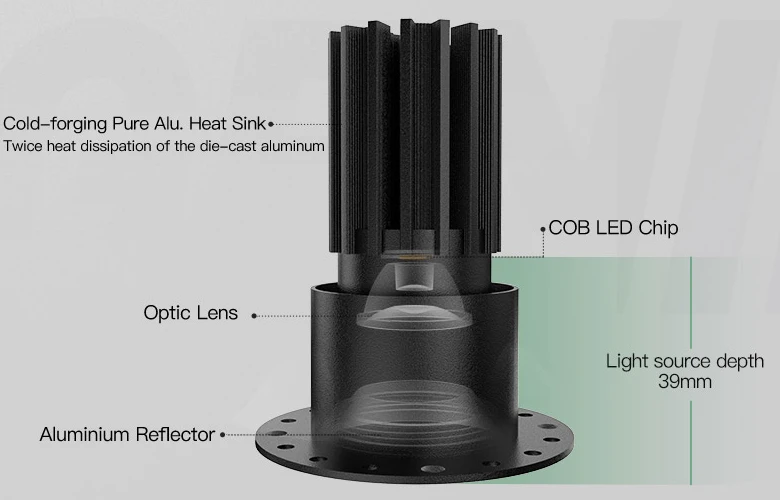

Features

1. Cold-forged aluminum radiator, twice heat dissipation of the die-cast alu.
2. COB LED Chip, CRI 97Ra, deep hidden light source, multiple anti-glare
3. Aluminum Reflector, Much better lighting distribution than plastic

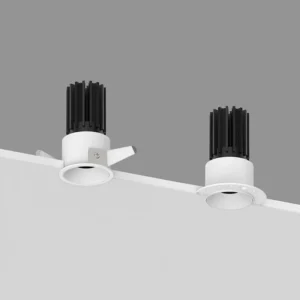

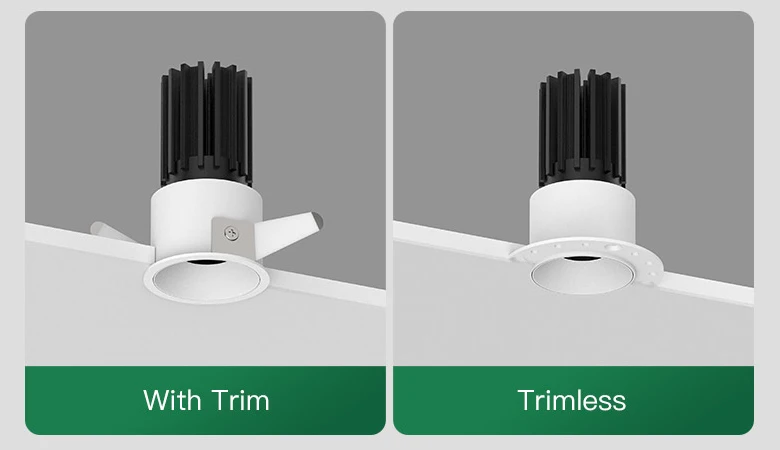

Embedded Parts: With Trim & Trimless
fitting wide range of gypsum ceiling/drywall thickness
Aviation Aluminium | Formed by Cold-forging and CNC | Anodizing finishing

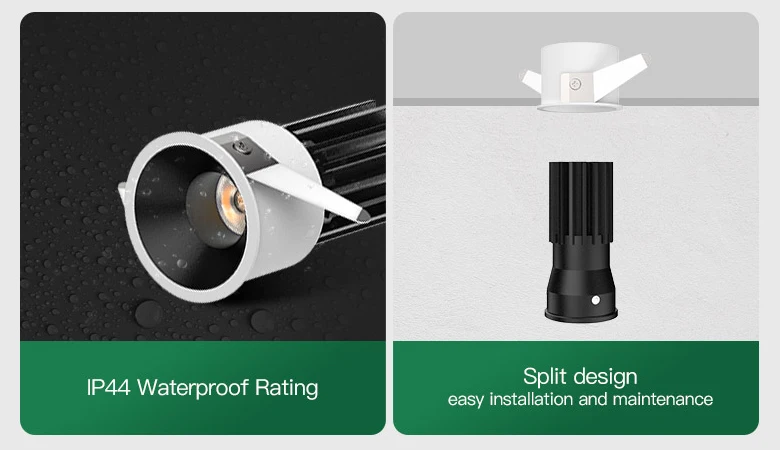

1. IP44 waterproof Rating
2. Split design, Easy installation and maintenance
